The Critical Role of MEP Engineering in Catheterization Laboratory Design
Catheterization laboratories represent some of the most technically demanding spaces in modern healthcare facilities. These specialized interventional suites, where cardiologists and vascular surgeons perform minimally invasive diagnostic and therapeutic procedures, require MEP (mechanical, electrical, and plumbing) systems that go far beyond standard hospital room requirements. The engineering behind these critical spaces must support advanced imaging equipment, maintain strict environmental conditions, and ensure uninterrupted operation during life-saving procedures.
At 5BY5 Engineers, we understand that successful cath lab projects require a deep knowledge of both healthcare operations and the technical requirements that make these spaces function flawlessly. Our experience working on medical facilities has taught us that every detail matters when lives are on the line. Facilities like LMH Health's interventional cardiology department demonstrate the life-saving capabilities these sophisticated spaces provide when properly designed and equipped.
Understanding the Unique Environment of Catheterization Labs

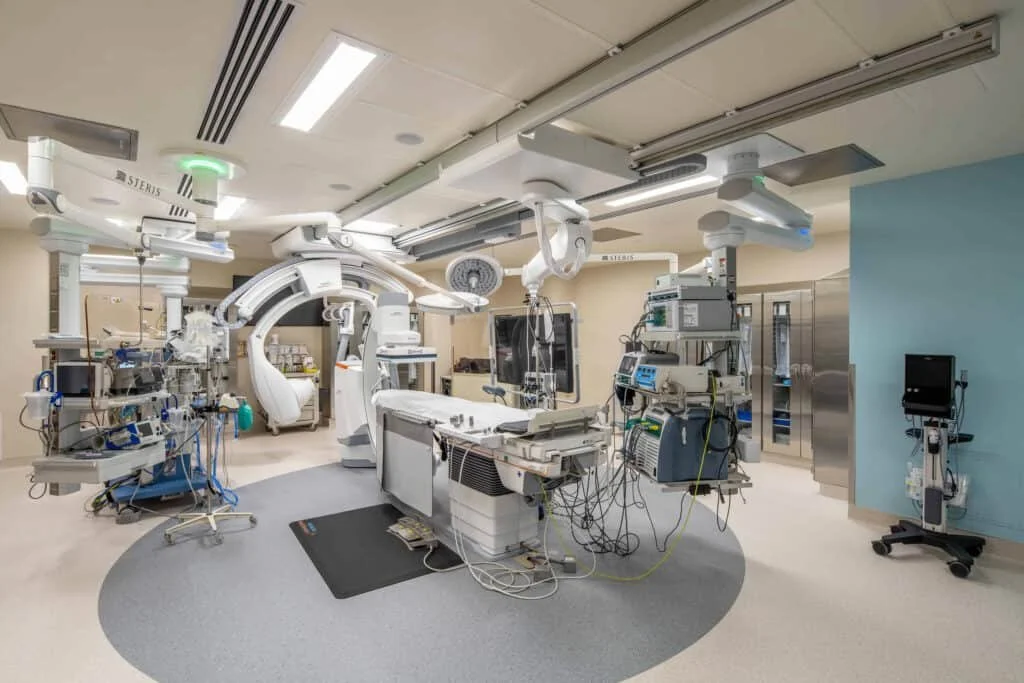

Catheterization labs serve as hybrid spaces between traditional operating rooms and diagnostic imaging suites. These rooms house sophisticated fluoroscopy equipment that provides real-time X-ray imaging to guide catheters through blood vessels to the heart or other areas of the vascular system. The procedures performed range from diagnostic coronary angiograms to complex interventions like angioplasty, stent placement, and valve repairs.
The technical complexity of these spaces creates unique challenges for MEP engineers. Unlike standard patient rooms or even typical surgical suites, cath labs must accommodate massive ceiling-mounted imaging equipment, support high-density electrical loads, maintain precise temperature and humidity levels, and incorporate radiation shielding, all while ensuring the comfort and safety of patients and staff.
Cath labs rank just below surgical suites in the hierarchy of medical spaces, requiring upper-tier design standards that go well beyond typical building systems. This elevated classification means every aspect of the MEP design must meet more stringent requirements for reliability, redundancy, and performance.
The Unique Challenges of Cath Lab Projects
Designing MEP systems for catheterization labs presents several distinctive challenges that set these projects apart from standard healthcare construction. Understanding these challenges helps explain why specialized expertise is essential for successful project delivery.
The design requirements for cath labs demand in-depth analysis to meet the higher standards required for these critical healthcare spaces. Each system must be carefully engineered to support complex medical procedures where equipment failure simply is not an option. This level of rigor requires engineers who understand not just building codes but also the clinical realities of interventional cardiology.
Space constraints create perhaps the most challenging aspect of cath lab design. In order to maximize space in the room for all medical equipment, there is limited space above the ceiling for MEP infrastructure. The massive imaging equipment, surgical lights, and other ceiling-mounted systems leave minimal room for ductwork, cable trays, and piping. This makes coordination between design disciplines even more critical than in typical construction projects. Our use of detailed Building Information Modeling helps identify conflicts before construction begins, preventing costly field changes.
Each healthcare facility may have its own unique design standards that go above and beyond the required code. Some institutions have developed preferences based on years of clinical experience, while others follow specific health system standards. Successful MEP engineers must navigate both code requirements and client-specific standards while maintaining the flexibility to accommodate operational preferences.
Perhaps the most fundamental challenge involves designing with a balance between durability, redundancy, and budget to ensure the critical systems within the hospital remain online. Healthcare facilities rightfully prioritize reliability, but projects must also remain financially feasible. Finding this balance requires experience with similar projects and honest discussions about where investment provides the greatest benefit to patient care and operational reliability.
Why MEP Components Are Critical for Cath Lab Projects
The MEP systems in catheterization labs go far beyond what is found in typical building spaces or even in many other areas of a hospital. Several specialized components distinguish cath lab infrastructure and make it critical to procedural success and patient safety.
The use of isolated ground electrical panels to protect the patient represents a fundamental safety requirement. These specialized electrical systems prevent microshock hazards to patients who have catheters positioned in or near their hearts. Even electrical currents too small to be felt by staff could cause cardiac arrhythmias in a patient with a direct conductive path to the heart muscle. Isolated power systems with line isolation monitors continuously verify electrical safety throughout procedures.
A secondary power source is required for these critical spaces, typically through generators, automatic transfer switches (ATS), and uninterrupted power supplies (UPS). While not common for typical building designs, this redundancy is standard in healthcare, depending on the space classification. Cath labs must maintain power to critical life-support equipment even during utility failures, making the emergency power system design as important as the normal power infrastructure.
Environmental control requires specialized HVAC components. Sub-cooling coils and humidifiers meet the precise space temperature and humidity requirements that balance equipment cooling needs with patient comfort. The sub-cooling coils provide additional dehumidification capacity beyond what standard cooling coils can achieve, essential for maintaining the 30-60% relative humidity range these spaces require.
Pressure controllers are used to ensure that clean spaces are kept that way by maintaining positive pressure relationships with adjacent areas. These automated systems continuously monitor pressure differentials and adjust airflow to prevent contamination migration into the cath lab. Unlike simple airflow measuring stations, pressure controllers actively maintain the required conditions regardless of external factors like door openings or changes in adjacent space conditions.
Increased outside airflow and low-wall returns are common in cath lab design. The higher outdoor air ventilation rates help maintain air quality, while the low-wall return configuration reduces the risk of disturbing sterile fields with air currents. This return air location also helps create better air distribution patterns within the space.
Medical gas systems are an integral part of the design, providing medical oxygen, medical air, vacuum suction, and often nitrous oxide for sedation. These systems must be positioned for easy clinical access while not interfering with the large C-arm imaging equipment that rotates around the patient. Redundancy in medical gas systems ensures continuous availability even if primary supply sources fail.
Electrical Systems: Powering Critical Medical Technology
The electrical infrastructure in a catheterization lab represents perhaps the most critical MEP component, with modern cath labs consuming 75-100 kVA or more of electrical power during procedures. Our approach to electrical engineering in cath labs addresses multiple specialized requirements that work together to create a safe and reliable environment:
High-Capacity Power Distribution
Detailed load calculations account not just for installed equipment but also for future technology upgrades, ensuring the electrical infrastructure can support the combination of imaging equipment, hemodynamic monitoring systems, physiological recorders, and advanced cardiac assist devices.
Emergency Power Integration
Every cath lab requires a connection to the hospital's emergency power system with automatic transfer switches that can shift to generator power within 10 seconds of a utility failure, preventing any interruption to critical life-support functions.
Isolated Power Systems
Sophisticated electrical isolation prevents microshock hazards to patients with catheters in or near their hearts, with line isolation monitors that constantly verify the integrity of the electrical isolation.
Equipotential Grounding
Comprehensive grounding systems minimize any potential difference between conductive surfaces that staff or patients might contact, adding another layer of electrical safety to these critical spaces.
Multi-Zone Lighting Design
These spaces need general ambient lighting for setup, focused task lighting for access sites and sterile fields, and the ability to significantly dim lighting during fluoroscopy procedures without compromising safety.
Emergency Lighting Systems
Dedicated emergency lighting automatically activates during power failures, ensuring staff can safely manage any situation regardless of electrical system status.
These electrical design elements combine to create a robust power infrastructure that supports the demanding requirements of modern interventional cardiology while maintaining the highest levels of patient and staff safety.
HVAC Design: Balancing Equipment Cooling with Patient Comfort
The heating, ventilation, and air conditioning requirements for catheterization labs involve competing demands that require thoughtful engineering solutions. The sophisticated imaging equipment generates substantial heat loads, often requiring 5-10 tons of cooling capacity per lab. At the same time, patients undergoing procedures are typically conscious but sedated, lying still on procedure tables, and are highly susceptible to feeling cold.
Our mechanical engineering approach addresses this challenge through careful system design. We typically recommend dedicated HVAC systems for each cath lab rather than connecting these critical spaces to general hospital air handling systems. This approach provides the precise control needed and prevents issues in other hospital areas from affecting the cath lab environment.
Temperature control is critical. While equipment generates heat, we maintain room temperatures between 68-73°F, with the ability to adjust based on specific procedure requirements. Some facilities prefer slightly cooler temperatures to compensate for the heat from overhead imaging equipment and the radiant warmth staff experience while wearing lead aprons. However, the system must respond quickly to prevent patients from becoming hypothermic during lengthy procedures.
Humidity control is equally important. We design systems to maintain relative humidity between 30-60%, preventing static electricity issues with sensitive electronics while avoiding conditions that could promote microbial growth. This requires careful attention to both humidification during winter months and dehumidification during humid weather. Sub-cooling coils provide the enhanced dehumidification capacity needed to maintain these tight humidity ranges even when outdoor conditions are challenging.
Air quality in cath labs requires careful consideration. While these spaces are not classified as operating rooms requiring the same level of air filtration, procedures do involve incisions and sterile fields. We typically design systems with MERV 14 or higher filtration and maintain positive pressure relationships with adjacent spaces to prevent migration of contaminants into the lab. Pressure controllers actively maintain these pressure differentials regardless of door openings or other disturbances that might affect airflow patterns.
Air change rates of 15-20 air changes per hour provide adequate ventilation without creating drafts that could disturb sterile fields. We incorporate increased outside airflow compared to typical spaces, both to meet code requirements and to ensure excellent air quality. Low-wall return air grilles help create optimal air distribution patterns while minimizing air currents over the sterile field.
Plumbing and Medical Gas Systems
The plumbing systems in catheterization labs serve several critical functions beyond basic hand-washing. These spaces require medical-grade sinks with hands-free operation for staff scrubbing before procedures. We position these strategically to allow proper preparation without requiring staff to pass through non-sterile areas.
More critically, cath labs demand comprehensive medical gas systems as an integral part of the design. Every procedure table location needs access to medical oxygen, medical air, and vacuum suction. Many facilities also require nitrous oxide for conscious sedation. These gas outlets must be positioned within easy reach but not interfere with the large C-arm imaging equipment that rotates around the patient.
We design medical gas systems with full redundancy, including emergency backup cylinders that automatically activate if the primary supply fails. Alarm systems notify staff immediately of any pressure issues. The vacuum system capacity must handle multiple simultaneous suction requirements without pressure drops that could compromise clinical effectiveness.
Catheterization labs also generate liquid waste that requires careful management. Contrast media, saline irrigation, and other fluids must be collected and properly disposed of. We design drainage systems with appropriate trap primers and enough capacity to handle the volumes generated during complex interventions.
Technology Infrastructure and Integration
Modern cath labs rely on sophisticated networks that integrate imaging systems, hemodynamic monitors, electronic medical records, and various other technologies, making the infrastructure supporting this technology a critical component of the MEP scope. We design comprehensive technology systems through a structured approach that ensures both current functionality and future flexibility:
1. Structured Cabling Systems
We design a comprehensive network infrastructure that provides both wired connections and support for wireless access points, accommodating current equipment while anticipating the rapid evolution of medical technology.
2. Cable Pathway Design
Adequate conduit and cable tray systems with extra capacity prevent costly renovations when new equipment arrives, giving facilities flexibility to adopt emerging technologies without major infrastructure upgrades, which is especially important given the limited ceiling space available.
3. Clinical System Integration
We integrate building systems with clinical technology to improve functionality, such as automatically adjusting lighting levels and activating lead shields when fluoroscopy begins.
4. Collaborative Planning Process
Close collaboration between MEP engineers, medical equipment planners, and clinical staff ensures all systems work together seamlessly, supporting rather than hindering clinical workflows.
5. Future-Ready Infrastructure
Our designs anticipate technology not yet invented through flexible infrastructure that can adapt to changing requirements without requiring complete system replacements.
This comprehensive approach to technology infrastructure creates cath labs that function as integrated environments where building systems and clinical technology work in harmony to support excellent patient care.
Bringing Expertise to Critical Healthcare Projects
Designing the MEP systems for catheterization laboratories requires specialized knowledge that goes well beyond standard engineering practice. These projects demand understanding of clinical workflows, familiarity with medical equipment requirements, knowledge of healthcare codes and standards, and the experience to anticipate challenges before they arise.
Our work on numerous healthcare projects has developed this expertise. We understand that successful cath labs result from careful attention to every detail of the MEP infrastructure. From the initial power calculations through final commissioning, we focus on creating spaces that support excellent patient care through reliable, well-designed building systems.
The complexity of catheterization lab projects makes them among the most challenging in healthcare facility design. The in-depth design requirements, limited ceiling space, need for coordination between disciplines, varying client standards, and balance between reliability and budget all contribute to this complexity. However, the importance of these spaces and the life-saving procedures performed within them makes this work incredibly rewarding. When a facility opens a new cath lab and begins treating patients with cutting-edge interventional techniques, knowing that the engineering infrastructure supports that care brings tremendous professional satisfaction.
At 5BY5, we have years of experience working with partners in design and construction. We’re excited to put our innovative expertise to work to make any project we take on a success. Have a project you’d like to discuss? Work with us.
